| Brand | Carlyle / Carrier |

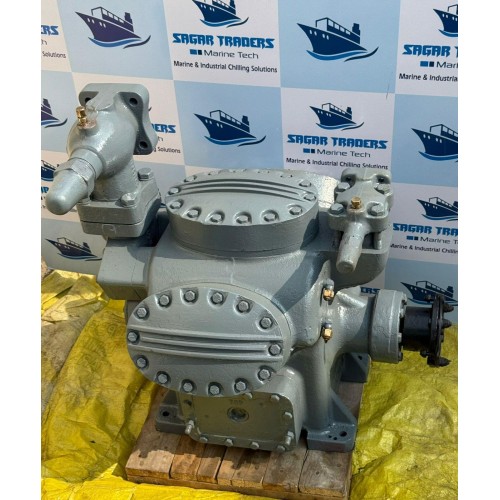

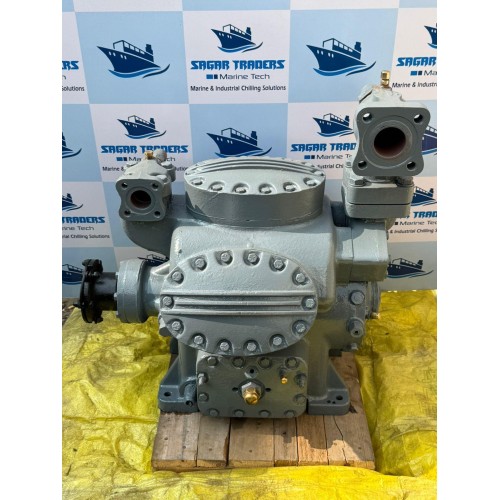

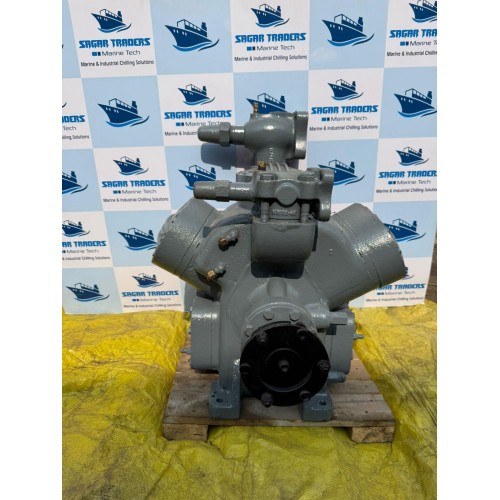

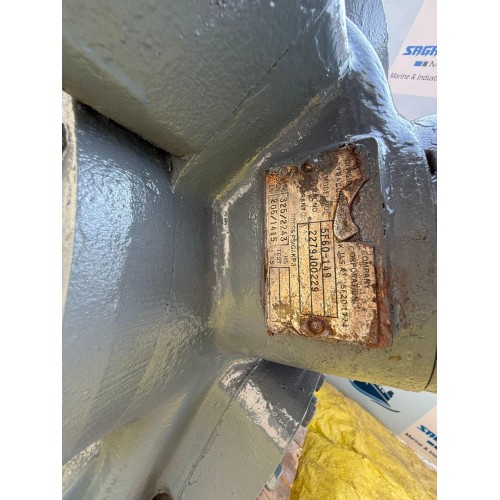

| Type | 5F60-149 |
| Refrigerant | Freon |
| Refrigerant type | R 404 A or other types |
| kW at 0ºC/+40ºC | 35 |
| kW at -5ºC/+40ºC | 28,2 |
| kW at -10ºC/+40ºC | 26,4* |
| kW at -20ºC/+40ºC | 13,6 |
| kW at -30ºC/+40ºC | 8,7* |
| kW at -40ºC/+40ºC | 5* |
| Electromotor Specs | 15 |
| On steel base frame |  |
| Pressure safety switches Hp/Lp/Op | |
| Pressure gauges Hp/Lp/Op | |
| Oil level system AC&R | |
| Remarks | | *Capacity based on -7C/+40C // -28C/+40C // -35C/+40C // Electromotor: 15 kW at 1445 RPM // Pulley EM: 180 / Comp: 240 |
| Sizes | 1300x850x1150 mm (LxWxH) |
