Gross weight4.04 KgNet weight3.26 KgEAN5702422003991ApprovalC UL US LISTED

EAC
LLC CDC TYSK

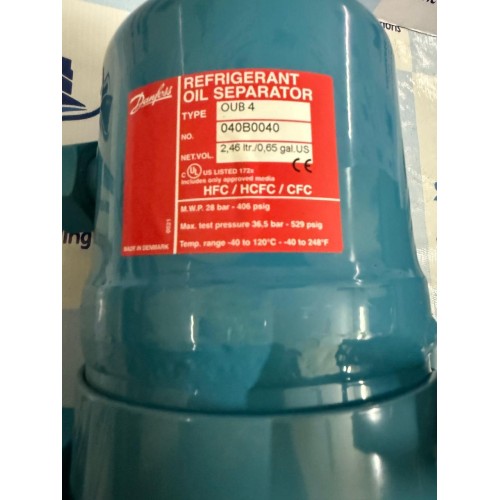

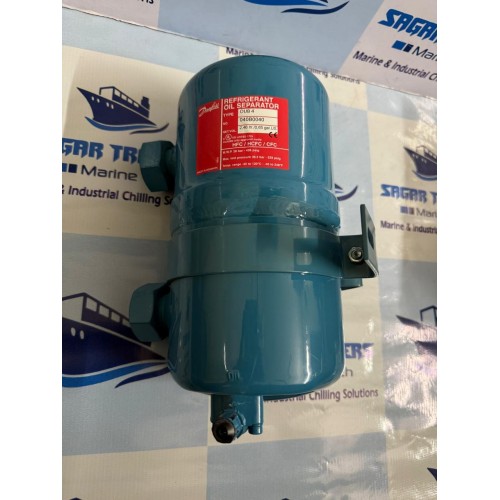

PEDApproval file nameREFRIGERANT OIL SEPARATOR 169NConnection size1 3/8-12 UNF-2BFlow direction indicatorEngraved OIL/IN/OUTFurther informationExcl. unionsInlet connection typeUnion nutInlet size [in]1 3/8 in - 12 UNFMax. test pressure [bar]40 barMax. test pressure [psig]580 psigMax. Working Pressure [bar]28 barMax. Working Pressure [psig]406 psigMedium temperature range [°C] [Max]120 °CMedium temperature range [°C] [Min]-40 °CMedium temperature range [°F] [Max]248 °FMedium temperature range [°F] [Min]-40 °FNet volume [l]2.46 LNetto volume [gal US]0.65 galOil reservoir vol. [foz US]13.53 ozOil reservoir vol. [l]0.5 LOutlet connection typeUnion nutOutlet size [in]1 3/8 in - 12 UNFPacking formatMulti packProduct accessoriesOUB accessoriesProduct descriptionOil Separator Excl. UnionsProduct family nameOUBProduct GroupOil separatorsProduct nameOil separatorProduct typeOUB 4Quantity per packing format1 pcRated capacity R134a [kW]9.6 kWRated capacity R22 [kW]11.6 kWRated capacity R404A/R507 [kW]12.8 kWRated capacity R407C [kW]16 kWRefrigerantsR134a
R22
R404A
R407A
R407C
R407F
R422B
R422D
R438A
R448A
R449A
R450A
R452A
R507A
R513AReturn connection size [in]7/16 in - 20 UNFReturn connection typeFLAREServiceableOUB spare partsTemperature range [°C] [Max]120 °CTemperature range [°C] [Min]-40 °CTemperature range [°F] [Max]248 °FTemperature range [°F] [Min]-40 °F
