MAYEKAWA/MYCOM M60P & M50P PUMP SPARES

MAYEKAWA/MYCOM M60P & M50P PUMP SPARES

MP series - oil pumps for screw compressors


  • The standard model of MYCOM oil pumps
  • Simple structure ensures stable operations
  • A wide lineup is offered (5sizes: M50P/M60P/ M80P/M100P/M125P, 62 to 1268 L/min /16.4 to 335.0USGPM)
  • Two shaft seals are used to offset the axial direction load (standard configuration MP: pressure up to 25bar (363PSI)*1, optional configuration MPH*2 pressure up to 30bar/435PSI)
    *1 For 60 only, to 22bar (319PSI)
    *2 For three series only, 50, 80, 100


?NameCatalogue number
Note
1

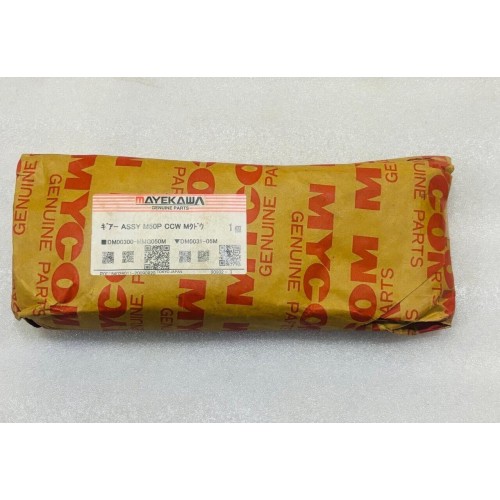

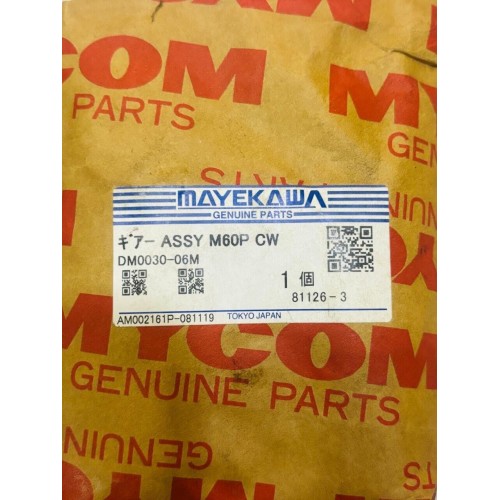

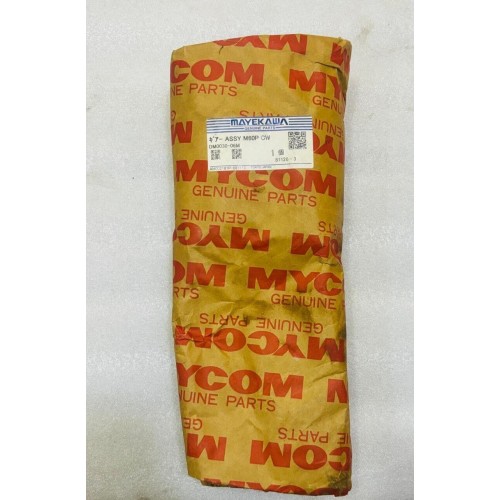

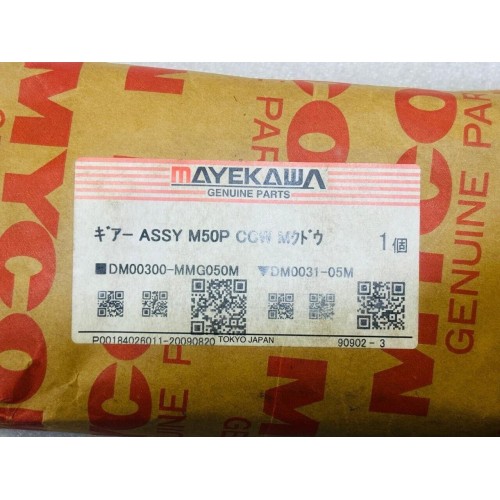

(2)		Drive rotor set (rotor set)DM00300-MM050M
DM00300-MM050F

5Gear casing (pump body)DM00500-050

6Seal cover (shaft seal cover)DM00600-050

7Blind cover (cover plug)DM00700-050

8Seal retainer (shaft seal lock)DM00800-050

9

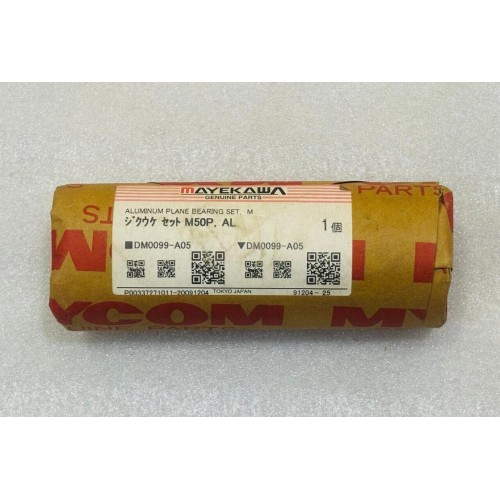

(10)		Bushing set (bearing (bushing) set)DM0099-A05
DM0099-C05
DM0099-W05

14-1Mechanical seal assembly (shaft seal (mechanical seal) kit)DM01400-050T

14-2O-ring set shaft seal (shaft seal (mechanical seal) sealing ring set)DM7040-H05
DM7040-F05

16O-ring seal/blind cover casing (body cover plug o-ring set)PA12-095
PC12-095

18O-ring shaft seal gland (shaft seal ring)PA12-045
PC12-045


21Key

22Hexagon socket head bolts (hex bolt)

23Hexagon socket head bolts (hex bolt)

24
(24)
(25)
(26)
(27)
(28)
(29)
(31)
(32)
(33)
(35)
(36)		Relief valve assembly (safety valve assembly)
Relief valve body (valve body)
Body flange (body flange)
Piston (piston)
Adjusting bolt (bolt)
Spring guide
Spring
Hexagon nut (nut)
Hexagon cap nut (cap)
Locking pin
O-ring, relief valve (safety valve sealing ring)
O-ring, relief valve spindle (valve stem sealing ring)		DM7029-050
























34Gasket, relief valve assembly (safety valve gasket assembly)DM03410-050

35O-ring, relief valve (safety valve sealing ring)PA12-045
PC12-045


36O-ring, relief valve spindle (valve stem sealing ring)PA11-009
PC11-009


37Hexagon socket head bolts (hex bolt)

38Companion flanges (counter flanges)

39Companion flange bolts (counter flange bolts)

41Flange gaskets, suction & discharge (suction/discharge flange gaskets)PH0033-050

49Drain pipe (drain) pipe)

 O-ring set, oil pump (oil pump ring set)

Consists of:
1 x O-ring seal/blind cover casing (16) (case cover plug o-ring set)
1 x O-ring shaft seal gland (18) (shaft seal ring)
1 x O-ring, relief valve (35) (safety valve sealing ring)
1 x O-ring, relief valve spindle (36) (valve stem sealing ring)		DM7109-N05
WDM7109-B05






















Z
